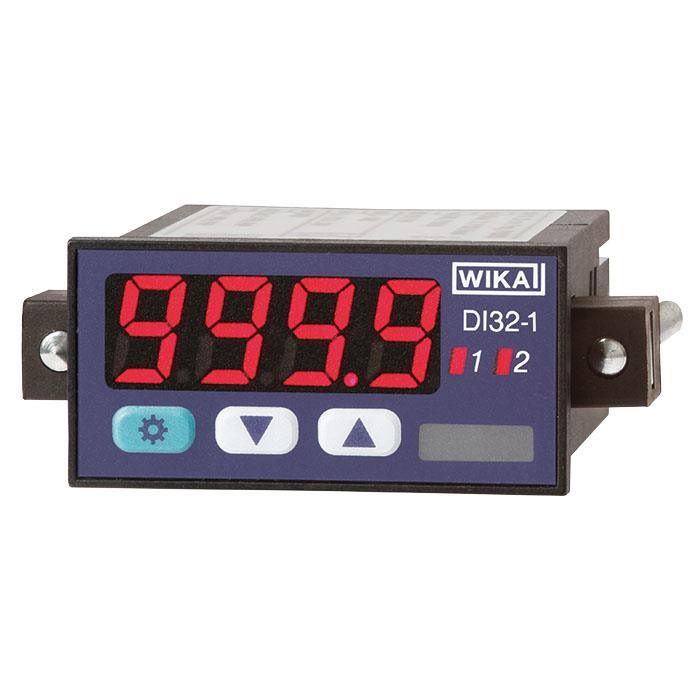

Digital Indicator with multi-function input - DI32-1
Brand: WIKA Instruments Ltd.The model DI32-1 digital indicator, due to its compact dimensions, is particularly suited to applications with limited mounting space.
Features- Multi-function input for standard signals, resistance thermometers and thermocouples (23 calibrated input configurations).
- Compact design: 48 x 24 x 52 mm (67 mm with plug-in terminal).
- 2 transistor switching outputs, output type freely selectable.
- MIN/MAX memory and tare function.
- Linearisation with up to 5 programmable points possible.
Specifications
Brand
Display Principle
- 7-segment LED, red, 4-digit
Character Size
- 10 mm
Indication Range
- -1999 ... 9999
Number & Type
- 1 multi-function input
Input Signals
- see table under “Accuracy specifications / Measuring error” (page 3)
Input Configuration
- Selectable via terminal connections and menu-driven programming
Signal Limits for Pulse & Reset Inputs
- Reset: Active < 0.8 V
- NAMUR: Low 2.5 mA
- PNP: Low 8 V
- NPN: Low < 0.8 V, high via resistor
- TTL: Low 3 V
Switch Behaviour
- High side, PNP: U+ - 3 V, 100 mA
- Low side, NPN: max. DC 28 V, 100 mA
Power Supply
- DC 9 ... 28 V, not galvanically isolated
Power Consumption
- ≤ 1 W
Material
- PC polycarbonate, Black, UL94V-0 Sealing: EPDM, 65 Shore, Black
Ingress Protection (per IEC 60529 / EN 60529)
- Rear: IP 00
- Front: IP 65
Dimensions
- W x H x D: 48 x 24 x 52 mm (with plug-in terminal T = 67 mm)
Panel Cutout
- 45.0+0.6 x 22.2+0.3 mm
Weight
- approx. 100 g
Mounting
- Screw-type mounting brackets for wall thicknesses to 5 mm
Operating Conditions
- Operation: -20 ... +50° C
- Storage: -30 ... +70° C
Humidity
- 0 to 85 % r.h. annual mean without condensation
