Gas-actuated Temperature Switch - TWG
Brand: WIKA Instruments Ltd.
These high-quality and robust temperature switches have been developed specifically for safety-critical applications. High quality and product manufacturing ensures reliable monitoring of your plant.
The manufacturer Cella is certified to ISO 9001. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested.
Features- No power supply needed for switching of electrical loads.
- Setting ranges from -30 ... +70 to 0 ... 600 °C.
- Ex ia version available.
- 1 or 2 independent set points, SPDT or DPDT, high switching power up to AC 250 V, 20 A.

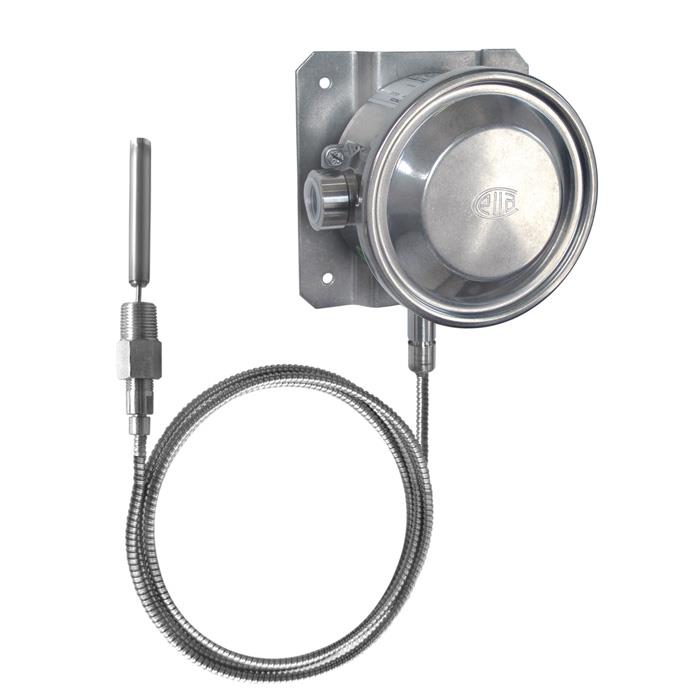

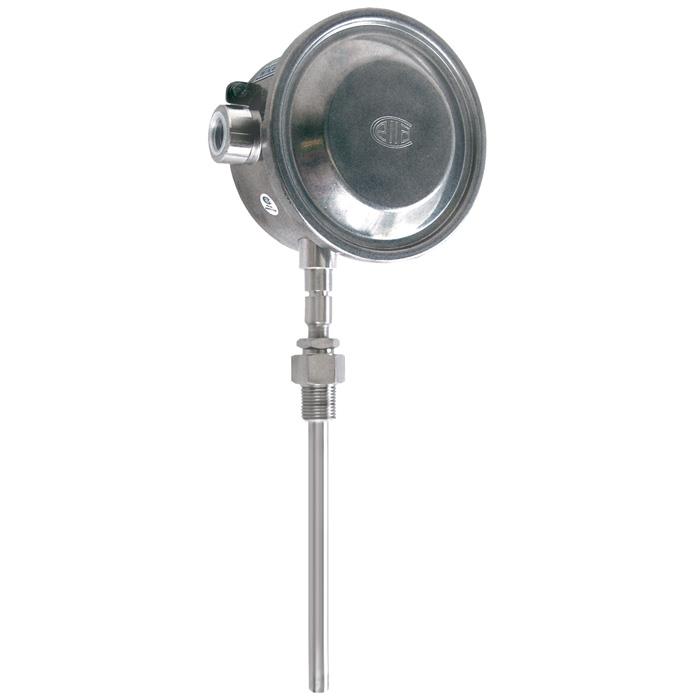

- Direct mounting or remote mounting with capillary ≤ 10 m.
Specifications
Switch Contact
- SPDT
- DPDT
Environmental Protection
- IP66
Certifications & Approvals
- CE
- EAC
- IECEx
- KOSHA
- SIL
Setting Range
- -30° to 600° C
Process Connection
- 1/2" NPT male
- 3/4" NPT male
- G 1/2" A male
- G 1/4" A male
Process Conenction Material
- Stainless steel
Enclosure, Body Material
- Stainless steel 316L
Ambient Temperature
- -40° to 85° C
