Measuring Probe - A2G-FM
Brand: WIKA Instruments Ltd.The model A2G-FM measuring probe measures air velocities and air flows in ventilation and air-conditioning systems. The intelligent design makes for a very easy installation in existing ventilation pipes and ducts.
Features- Multipoint averaging on the basis of the “Log-Tchebycheff” method to ensure a high accuracy
- Bevelled sensor points guarantee uniform measured values
- Very easy to install

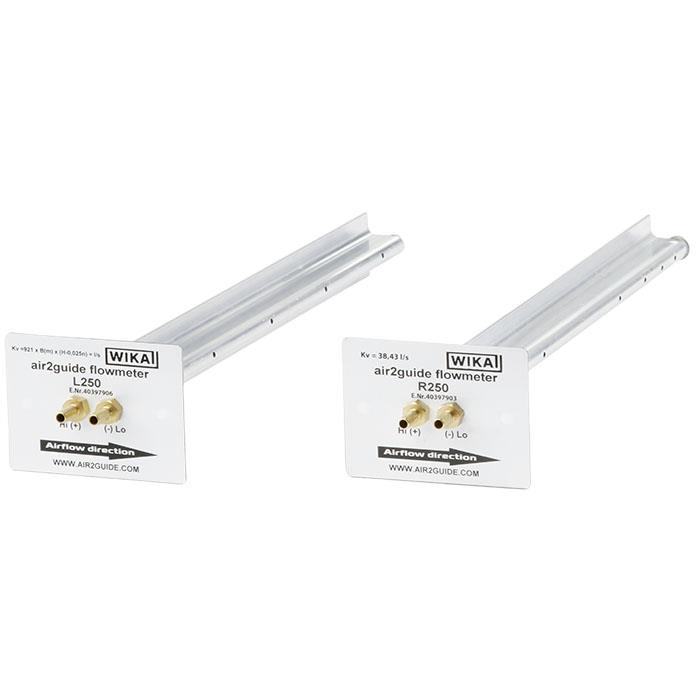

- Available in two versions
- For circular ventilation pipes (version R)
- For rectangular ventilation ducts (version L)
Specifications
Accuracy
- ±2 %
Permissible Medium Temperature
- 5 … 95° C
Process Connection
- 4.5 mm brass with barbs
- + High pressure
- - Low pressure
Versions
- Pipe: 100, 125, 160, 200, 250, 300, 315, 400, 450, 500, 550, 600, 630, 750, 800, 900, 1,000, 1,100, 1,200 mm Version R: Version for circular ventilation pipes Diameter of the ventilation pipe in mm = Length of the measuring probe Example: Ventilation pipe diameter 100 mm = A2G-FM R100
- Duct: 250, 300 … 1,200 mm (in 50 mm increments) Version L: Version for rectangular ventilation ducts Depth of the ventilation duct = Length of the measuring probe Example: Duct depth 600 mm = A2G-FM L600
Material
- Probe: T3015 aluminium
- Mounting plate: Sheet steel
- Sealing: Polyurethane foam
Relative Humidity
- 0 to 95 % r. h., Non-Condensing
Weight
- on request
