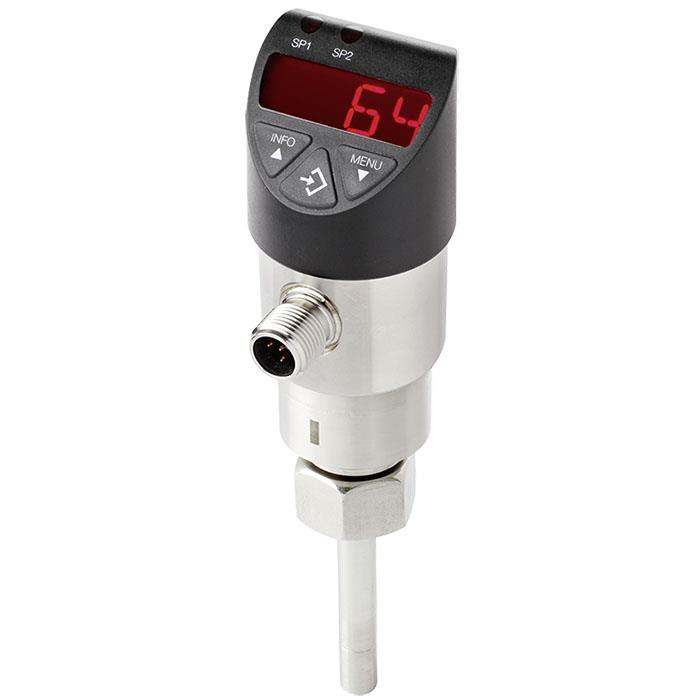

Flow Switch - FSD-3
Brand: WIKA Instruments Ltd.The successful design and the excellent functionality of the WIKA switch family were already confirmed by winning the “iF product design award” for the pressure switch model PSD-30.
Features- Reliable flow monitoring of liquid media.
- Switching and Analog outputs for flow, temperature and diagnostics.
- Easily parameterisable via the local display.
- Free from wear, without any moving parts in the medium.
Specifications
Certifications & Approvals
- CE
- cULus
- RoHS
Environmental Protection
- IP65
- IP67
Flow Rate
- Water: 5 to 150 m/s
Temperature Range
- -20° to 85° C (-4° to 185° F)
Power Supply
- 15-35 Vdc
Process Conenction Material
- Stainless steel 316Ti
Case Material
- Stainless steel 304
Process Connection
- M18 x 1.5
- G ¼" A
- G ½" A
- ¼" NPT
- 1/2" NPT
Insertion Length
- 22 to 119 mm (0.87" to 4.69")
Seal Material
- NBR
- FPM/FKM
