Bimetal Thermometer - A43
Brand: WIKA Instruments Ltd.
The model A43 bimetal thermometer was developed as a standard version for simple temperature indication in heating applications.
Its modular design enables a multitude of combinations of case materials, nominal sizes, scale ranges and stem lengths. This ensures that the basic dimensions are maintained.
Features- Reliable and cost-effective.
- Indication accuracy class 2 in accordance with EN 13190.
- Scale ranges from -30 ... +120 °C.
Specifications
Measuring Element
- Bimetal coil
Nominal Size
- 100
- 80
- 63
Working Range
- Full scale value
Case

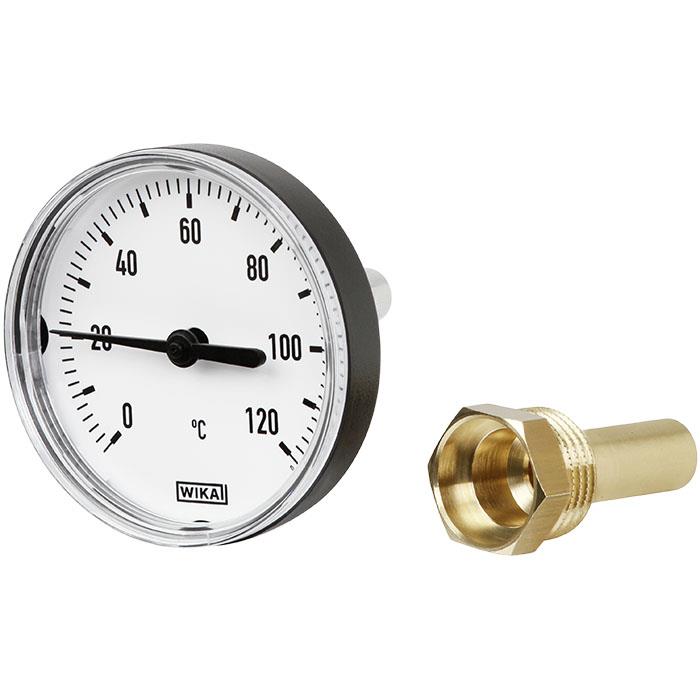

- Model A43.30: Plastic, black

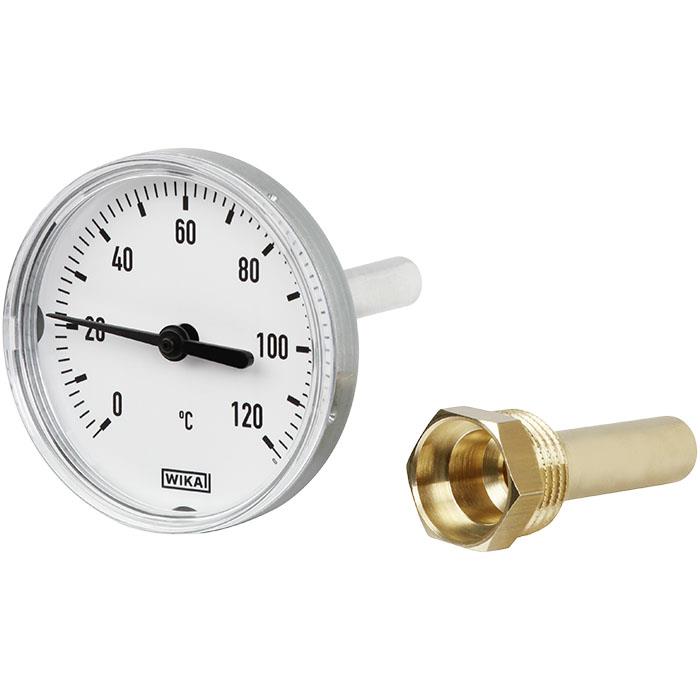

- Model A43.20: Steel, galvanised
- Model A43.10: Aluminium
Connection Location
- Back mount (BM), centre
Process Connection
- Thermowell G ½ B, copper alloy
Stem
- Aluminium
Thermowell
- Removable, friction fit
- Copper alloy
Permissible Operating Pressure at Thermowell
- Max. 6 bar
Dial
- Plastic, white, black lettering
Pointer
- Plastic, black
Window
- NS 80, 100: SAN
- NS 63: PS
Indication Accuracy
- Class 2 per EN 13190
Zero Adjustment
- At bottom of stem
