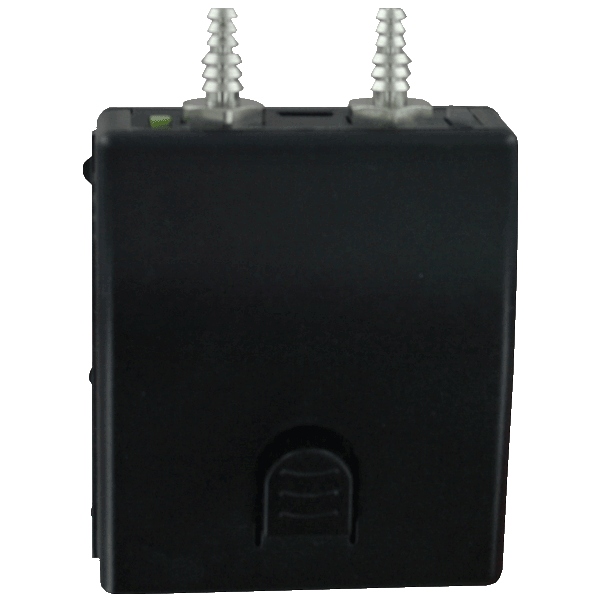

Series WDPM Differential Pressure Module
Brand: Dwyer Instruments, Inc.SERIES WDPM Wireless Differential Pressure Modules for use with the Model UHH handheld meter and the Mobile Meter® Software Test Instrument Mobile App.
Features- Compatible with Dwyer's Mobile Meter App
- Bluetooth Gateway allows for up to 10 probes for simultaneous readings
- Simple single button operation for power and logging
- Wide selections of ranges for optimum accuracy
Specifications
Accuracy
- ± 0.5% of Full Scale of Span at 25° C (77° F)
Ambient Temperature Range
- -10° to 60° C (14° to 140° F)
Approvals & Certifications
- CE
Compensated Temperature
- 0° to 60° C (32° to 140° F)
Media
- Non-Corrosive Dry Gases
Power Requirement
- 3.7 V Lithium YT562447 Ion Battery
Pressure Range
- Inches WC: ± 2 to ± 350
- psi: 10 to 45 (kPa: 68.9 to 310.3, bar: 0.7 to 3)
Process Temperature
- -10° to 60° C (14° to 140° F)
Temperature Effect
- ± 0.01% of Full Scale / °F (± 0.02% of Full Scale / °C)
Temperature Range
- 0 to 45° C (32 to 113° F) - Battery Charging Limit
Tube Connection
- 1/8" ID Tube
- 3/16" LD Tube
