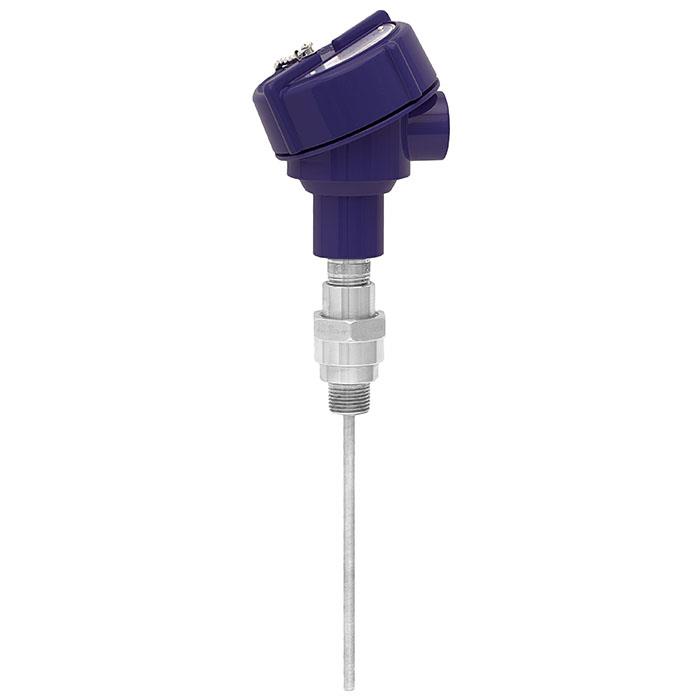

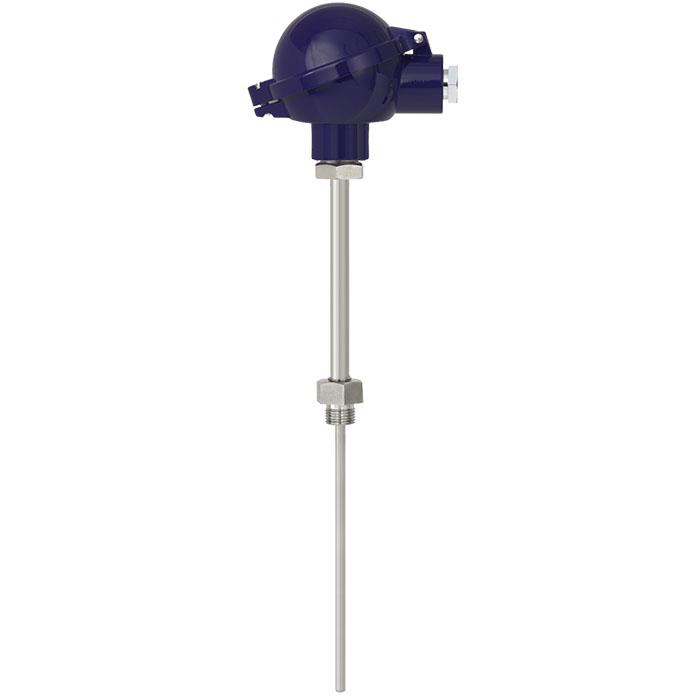

Resistance Thermometer - TR10-B
Brand: WIKA Instruments Ltd.
Resistance thermometers in this series can be combined with a large number of thermowell designs. Operation without thermowell is only recommended in certain applications.
A wide variety of possible combinations of Pt100 or Pt1000 sensor, connection head, insertion length, neck length, connection to thermowell etc. are available for the thermometers; suitable for any thermowell dimension and any application.
Optionally we can fit analogue or digital transmitters from the WIKA range into the connection head of the TR10-B.
Features- Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
- For mounting in all standard thermowell designs.
- Spring-loaded measuring insert (replaceable).
- Pt100 or Pt1000 sensors.
- Explosion-protected versions.
Specifications
Sensor Type
- Pt100, Pt1000
Temperature Range
- -196 to 600 °C (-320 to 1.112 °F)
Certifications & Approvals
- NAMUR NE24
- SIL 2
- DNV GL
- Uzstandard
- UkrSEPRO
- BelGIM
- KazInMetr
- GOST
- PESO
- KOSHA
- NEPSI
- INMETRO
- EAC
- IECEx
- CE
- MTSCHS
Environmental Protection
- IP00
- IP66
- IP65
Connection Method
- 2 x 2-wire, 3-wire, 4-wire
- 1 x 2-wire, 3-wire, 4-wire
Material of Construction
- Connectio head: Aluminum, stainless steel, Plastic, Polypropylene
Display
- LCD, LC
