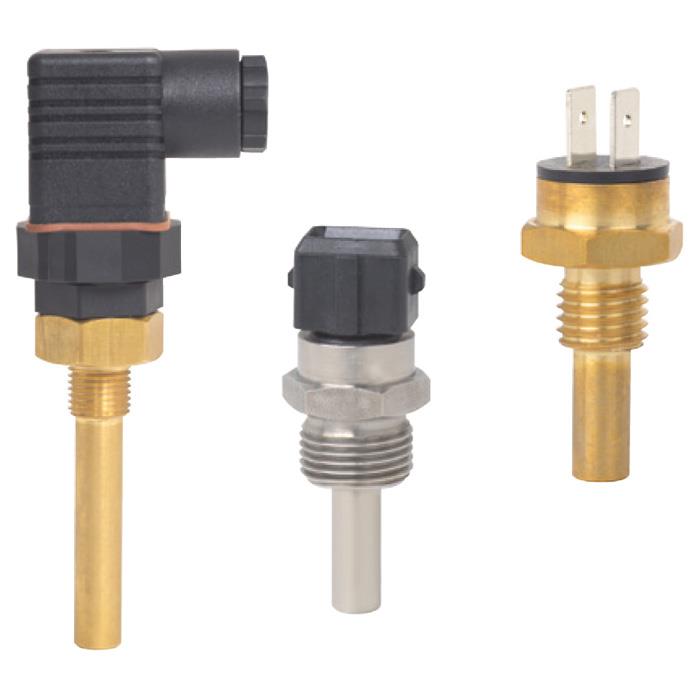

Temperature Switch - TFS35
Brand: WIKA Instruments Ltd.Temperature switches are generally used in industry for limiting temperature. They monitor the temperature of machinery and equipment and, for example, switch off machinery if it overheats or switch on a fan to cool the equipment.
Features- Fixed switching temperature
- Automatic reset
- No additional voltage supply
- Switching voltages up to AC 48 V / 3 A
Specifications
Accuracy
- Switch point: ±5 K
Thermowell Material
- Brass, Stainless steel
Stem Diameter
- 10 mm (0.394")
Process Connection
- G 1/4" B
- G 1/2" B
- G 1/2" A
- M14 x 1.5
- 1/4" NPT
- 1/2" NPT
Insertion Length
- 30 to 100 mm
Environmental Protection
- IP65
- IP66
- IP67
Certifications & Approvals
- CE
- EAC
- RoHS
