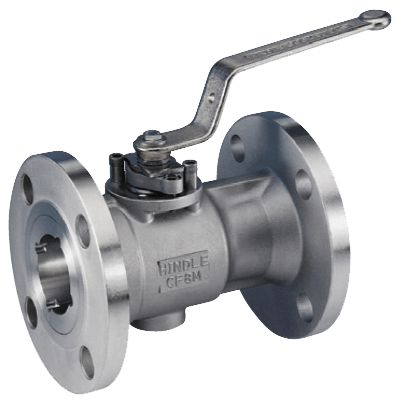

Hindle Model 110/200 Ultra-Seal Floating Ball Valve
Images are representations only.

Model 110/200 Ultra-Seal

Brand: Emerson Electric Co.

  • One piece reduced bore body, flanged construction in carbon steel, stainless steel and special alloys.
  • Compact body design with minimum weight and elimination of potential leak path.
  • Designed in accordance with ASME B16.34, BS EN ISO 17292 and ISO 14313/API 6D.
  • Floating ball design for bi-directional shut-off.
  • Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.
  • Low temperature and cryogenic designs for service down to -196°C available on request.
  • Spring energized metal and carbon seat designs permitting tight shut-off and positive cavity pressure relief.
  • Fused hard nickel alloy, chromium Carbide or Tungsten Carbide coated seat and ball designs for abrasive and high temperature service.
  • Hard carbon seat design for medium temperature applications.
  • High integrity shaft seal minimizing the potential for atmospheric leakage.
  • Fugitive emission performance to BS EN ISO 15848-2 class A.
  • Corrosion resistant trim. Standard valves incorporate balls and shafts of stainless steel for long service life.
  • Fire test certified. All sizes and pressure ratings are covered by approved certification.
  • Anti-static and blow-out proof shaft design.
  • Most designs offer cavity pressure relief to upstream in event of thermal expansion.
  • Could be integrated into a SIL 3 enviroment safety instrumented system.

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • Aluminum Bronze
  • Carbon Steel
  • Duplex Stainless Steels

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 300#

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#
  • 1" (DN25) - 300#

Flange Size - 1/2" (DN15)

  • 1/2" (DN15) - 150#
  • 1/2" (DN15) - 300#

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#
  • 10" (DN250) - 300#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 300#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 300#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 150#
  • 3/4" (DN20) - 300#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 300#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#
  • 6" (DN150) - 300#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#
  • 8" (DN200) - 300#

Port

  • Reduced (Standard, Regular)

Temperature Range

  • -196° to 450° C (-321° to 842° F)

Valve Type

  • Manual
