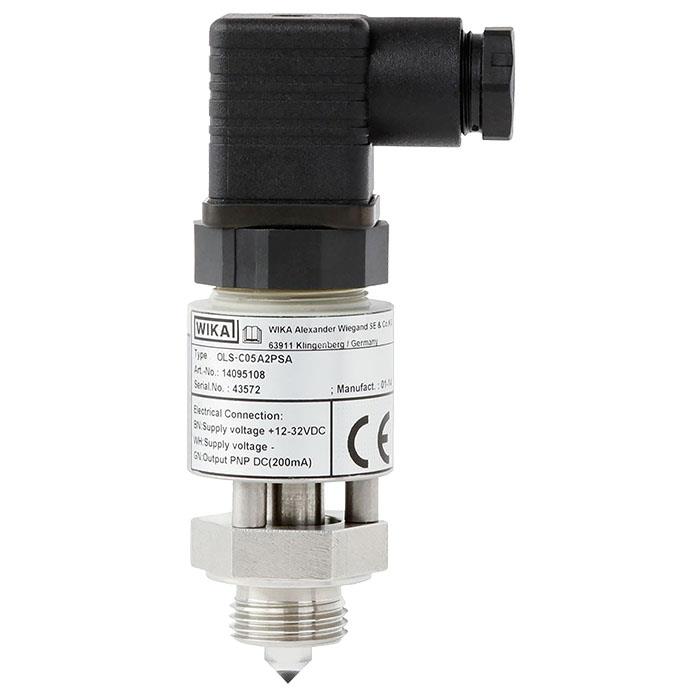

Optoelectronic Level Switch - OLS-C05
Brand: WIKA Instruments Ltd.The model OLS-C05 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.
The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.
Features- Use at temperatures of up to +170 °C.
- Mounting position as required.
- Accuracy ±2 mm.
- Visual indication of the switching status.
- Choice of electrical connections: PUR, PVC cable, circular.
- connector M12 x 1 or angular connector EN 175301-803 A.
Specifications
Measurement Accuracy
- ≤ ±2 mm
Minimum Distance from the Glass Tip to An Opposite Surface
- ≥ 20 mm with electropolished surface
- ≥ 10 mm
Mounting Position
- as required
Process Connection G
- G ½ male
Responsiveness
- Option: Adjustable responsiveness (trimmer) for other liquids and foaming media
- Preset for the detection of aqueous media and oils
Medium Temperature
- -40 … +170° C [-40 … +338° F]
Ambient Temperature
- -30 … +80° C [-22 … +176° F]
Operating Pressure
- 0 to 25 bar [0 to 2.5 MPa / 0 to 363 psi]
Materials
- Process connection: Stainless steel 316Ti
- Case: Stainless steel 303 (non-wetted parts)
- Light: Borosilicate glass, fixed with epoxy resin
Power Supply
- DC 12 ... 32 V
Max. Current Supply
- 40 mA
Electrical Connection
- Angular connector: per EN 175301-803 A
- Circular connector: M12 x 1 (4-pin)
- PUR, PVC cable: Cable length freely definable Diameter: 3 x 0.25 mm2 Cable end: Cut to length
Output Signal
- PNP transistor, protected against reverse polarity, 200 mA switching current
Switching Function
- Normally open (closed in medium) or normally closed (open in medium)
Ingress Protection
- IP65
Number of Switch Points
- 1
Response Time
- 0.5 s
