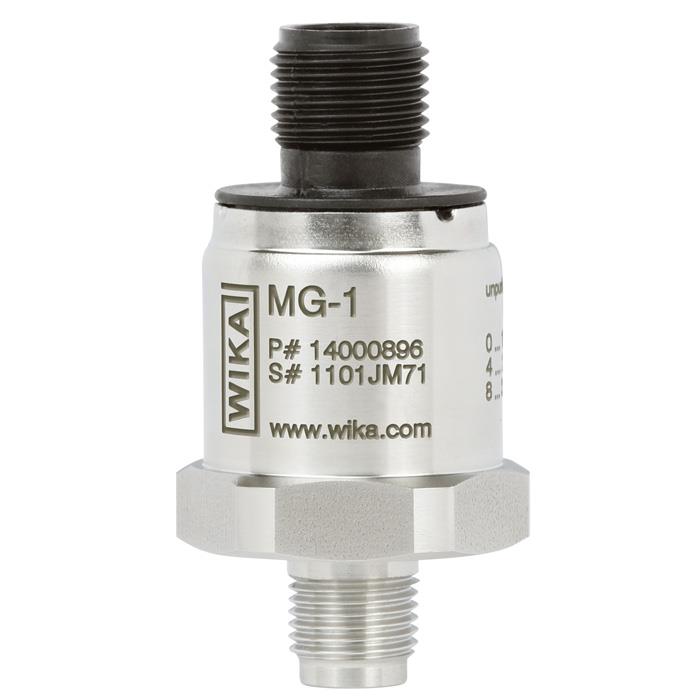

Pressure Transmitter - MG-1
Brand: WIKA Instruments Ltd.The model MG-1 pressure sensor has been developed for the measurement of pressure with medical gases and for oxygen applications. Only materials that are suitable for oxygen applications are used.
Features- Measuring ranges from 0 … 6 to 0 … 16 bar [0 ... 100 to 0 ... 200 psi] and from 0 … 200 to 0 … 400 bar [0 ... 3,000 to 0 ... 5,000 psi]
- Output signals 4 … 20 mA, DC 0 … 10 V, DC 0 … 5 V, DC 1 ... 5 V, DC 0.5 … 4.5 V ratiometric
- Oxygen clean in accordance with international standards
- Available in four levels of cleanliness
- Three packaging variants
Specifications
Wetted Material
- Process connection: stainless steel 316L and 13-8 PH
- Sealing ring: FKM
Case Material
- stainless steel 316L
Certifications & Approvals
- CE
- EAC
- GOST
- CRN
- MTSCHS
- KazInMetr
- Uzstandard
Environmental Protection
- IP67
Measuring Range
- 0 to 400 bar (0 to 5,000 psi)
