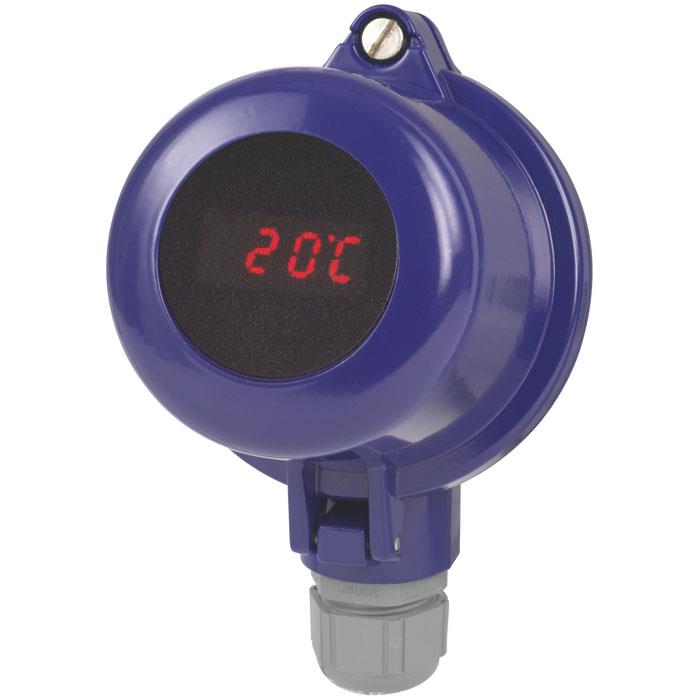

Connection Head with Integrated Digital Display Module - DIH10, DIH10-Ex
Brand: WIKA Instruments Ltd.
The model DIH10, DIH10-Ex integrated digital display module (digital indicator) is a universal, configurable, current loop display for fitting to electrical thermometers.
The robust, compact display is only applicable where a standard signal of 4 ... 20 mA is already available. When used with the housing versions, it can be an on-site display for the entire industrial sector.
Features- Universal application.
- Robust, compact current loop display.
- User-friendly configuration.
- 7-segment LED display.
- Housing versions:
- Connection head (standard).
- Housing with pipe support.
Specifications
Brand
Current Loop
- 4 ... 20 mA
Input Impedance Ri with 20 MA
- < 160 Ω (U ≤ 3.2 V)
Voltage Drop
- < DC 3.2 V at 20 mA Supply via current loop
Resolution
- -999 ... 9999 digit
Measuring Error
- ±0.2 % Measuriing Range, ±1 digit
Temperature Drift
- 100 ppm/K
Display Principle
- LED, rotatable in 90° steps
Display Measured Value
- 7-segment, 8 mm high, red, 4-digit = display 9999
Overrange / Underrange
- to HI / to LO
Display Rate
- 0.1 s - 1 s - 10 s (adjustable)
Maximum Voltage Ui
- DC 30 V
Maximum Current Ii
- 100 mA (only for model DIH10-Ex)
Maximum Power Pi
- 1 W (only for model DIH10-Ex)
Permissible Temperatures
- Storage Temperature: -20 ... +80° C
- Model DIH10-Ex: 0 ... 60° C
- Operating Temperature: Model DIH10: 0 ... 80° C
Dimensions
- Ø 43.0 / 48.5 / 62.5 mm x 37 mm
Housing Material
- Polycarbonate
Ingress Protection
- Connection: IP20 or IP00
- Front: IP67
Weight
- approx. 55 g
Electrical Connection
- Plug-in terminal, up to 1.5 mm² open cable ends
Programmable Features
- programming lock, interpolating points, TAG number
- Scale Range, display time, decimal point, unit (° C / °F), zero point stabilisation,
Housing Versions
- Connection head (standard)
- Housing with pipe support
