Float Switch - RLS-1000

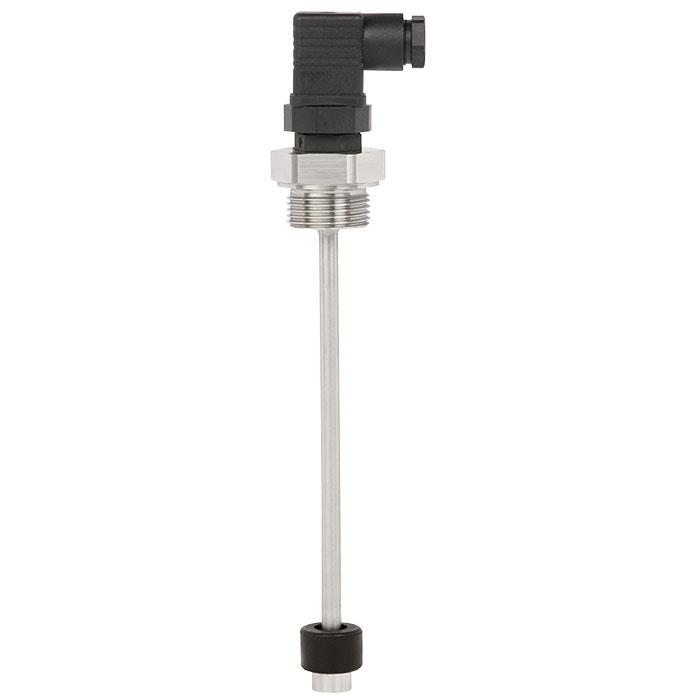

Brand: WIKA Instruments Ltd.The model RLS-1000 float switch has been developed for monitoring the level of liquids. The stainless steel used is suitable for a multitude of media, such as, for example, oil, water, diesel and refrigerants.
Features- Media compatibility: Oil, water, diesel, refrigerants and other liquids.
- Permissible medium temperature range: -30 to150 °C.
- (-22 to 302 °F).
- Up to 4 switching outputs freely definable as normally.
- open, normally closed or change-over contact.
- Potential-free switching reed contacts.
Specifications
Measuring Principle
- Potential-free switching reed contacts are triggered by a magnet in the float.
Guide Tube Length L
- 60 ... 1,500 mm [2.5 ... 59 in], other lengths on request
Output Signal
- Up to 4 switch points, depending on the electrical connection: SP1, SP2, SP3, SP4
Switching Function
- Alternatively normally open (NO), normally closed (NC) or change-over (SPDT) contact - on rising level
Switch Position
- Specified in mm, starting from the upper sealing face (SP1 ... SP4)
- At the end of the guide tube ≈ 45 mm [≈ 1.8 in] cannot be used for switch positions.
Distance Between Switch Points
- Minimum distance SP1 to the upper sealing face: 50 mm [2.0 in]
- Minimum distance between the switch points:
- 50 mm [2.0 in], for floats with outer ∅ = 44 mm [1.7 in], 52 mm [2.0 in]
- 30 mm [1.2 in], for floats with outer ∅ = 25 mm [1.0 in], 30 mm [1.2 in]
- Minimum distance with 3 switch points: 80 mm [3.1 in], either between SP1 and SP2 or SP2 and SP3
- Minimum distance with 4 switch points: 80 mm [3.1 in], between SP2 and SP3
Switching Power
- Normally closed: DC 100 V; 10 W; 0.5 A
- Floats with outer ∅ = 44 mm [1.7 in], 52 mm [2.0 in]
- Normally open: AC 230 V; 100 VA; 1 A; max. 100 Hz
- Normally closed: DC 230 V; 50 W; 0.5 A
- Change-over contact: AC 230 V; 40 VA; 1 A; max. 100 Hz, DC 230 V; 20 W; 0.5 A
- Floats with outer ∅ = 25 mm [1.0 in], 30 mm [1.2 in]
- Normally open: AC 100 V; 10 VA; 0.5 A; max. 100 Hz
- Change-over contact: AC 100 V; 5 VA; 0.25 A; max. 100 Hz, DC 100 V; 5 W; 0.25 A
Accuracy
- ±3 mm switch point accuracy incl. hysteresis, non-repeatability
Mounting Position
- Vertical ±30°
Process Connection
- G 1, installation from outside
- G 1 ½, installation from outside
- G 2, installation from outside
- Flange DN 50, form B per EN 1092-1 (DIN 2527), PN 16, installation from outside
- G ⅛, installation from inside 2) 3)
- G ¼, installation from inside 2) 3)
- G ⅜, installation from inside 2)
- G ½, installation from inside 2)
Wetted Material
- Process connection, guide tube: Stainless steel 316Ti
Non-Wetted Material
- Case: Stainless steel 316Ti
Permissible Temperature
- -30° to 80° C (-22° to 176° F)
