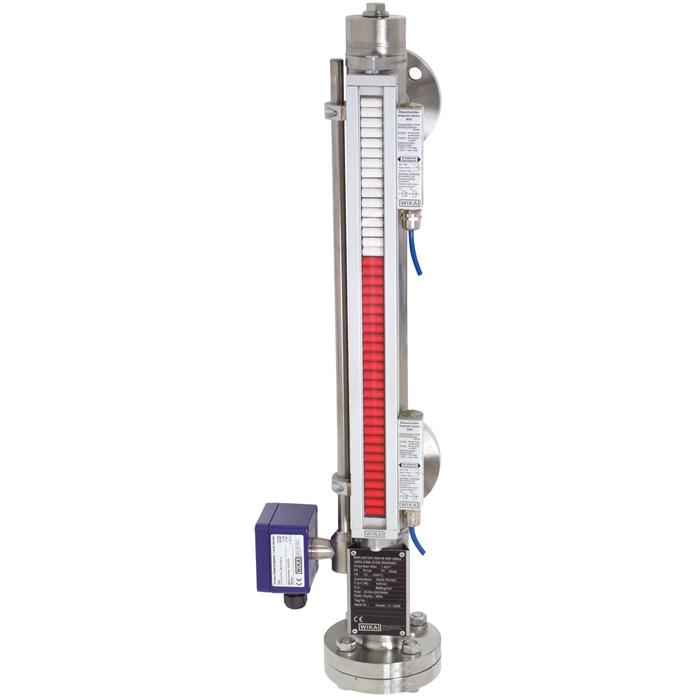

Level Gauge - BNA
Brand: WIKA Instruments Ltd.The level gauge model BNA consists of a bypass chamber, which, as a communicating tube, is connected laterally to a vessel via at least 2 process connections (flanged, threaded or welded).
Features- Process- and system-specific productionWide variety of different process connections and materials.
- Process- and system-specific production.
- Operating limits:.
- Operating temperature: T = -196 ... +450 °C.
- Operating pressure: P = vacuum to 400 bar.
- Limit density: ρ ≥ 340 kg/m.
- Wide variety of different process connections and materials.
- Mounting of level sensors and magnetic switches possible as an option.
- Explosion-protected versions.
Specifications
Certifications & Approvals
- ATEX
- GL
- DNV
- ABS
- GOST-R
Enclosure / Body Material
- Stainless steel 1.4571 (316Ti)
- PP, PVDF
- Titanium 3.7035
- Hastelloy C276 (2.4819)
Opearting Temperature
- -196° to 450° C
Operating Pressure
- Vacuum to 400 bar
