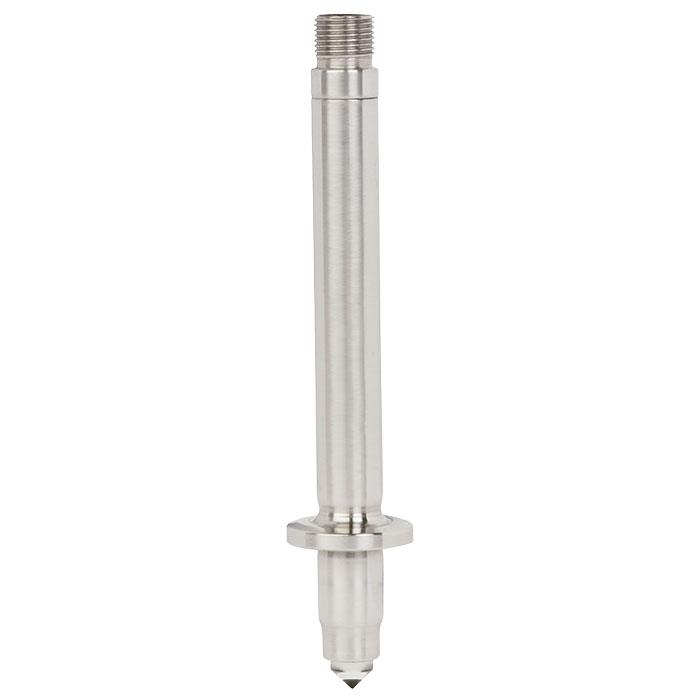

Optoelectronic Level Switch - OLS-F1
Brand: WIKA Instruments Ltd.The model OLS-F1 optoelectronic level switch is used for monitoring the level of liquids in sanitary applications. The optoelectronic sensor consists of an infrared LED and a light receptor.
The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.
Features- Autoclavable.
- Compact design.
- No moving components.
- Mounting position as required.
- Accuracy ±2 mm.
Specifications
Environmental Protection
- IP65
- IP69K
Certifications & Approvals
- CE
Operating Pressure
- 0 to 2.5 MPa (0 to 25 bar)
Case Material
- Stainless steel 1.4435
Process Connection Material
- Stainless steel 1.4435
Process Conenction
- Clamp connections: 3/4", 1", 1-1/2"
Insertion Length
- 30 to 300 mm
