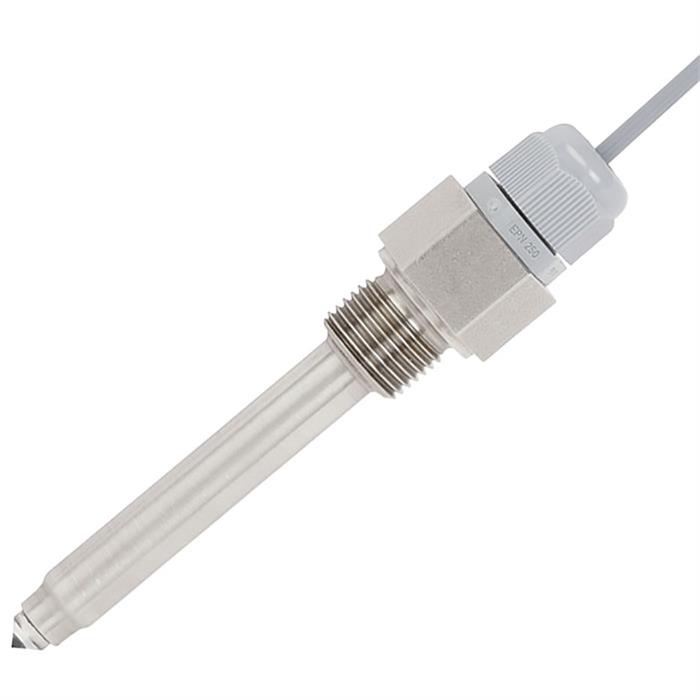

Optoelectronic Level Switch - OLS-C02
Brand: WIKA Instruments Ltd.The model OLS-C02 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.
The model OLS-C02 level switch offers the advantage that its switch length is selectable. This enables an optimal adaptation to the application-specific requirements.
Features- Selectable switch length from 65 mm to 1,500 mm.
- No moving components.
- Mounting position as required.
- Accuracy ±2 mm.
- Choice of electrical connections: PUR, PVC cable, circular connector M12 or angular connector EN 175301-803 A.
Specifications
Process Connection
- G 1/2' male
Switch Length
- 65 to 1,500 mm
Medium Temperature
- -30° to 100° C
Ambient Temperature
- -25° to 70° C
Operating Pressure
- 0 to 2.5 MPa (0 to 25 bar)
Material of Construction
- Light guide: Borosilicate glass, fixed with silicone adhesive (Option: Fixed with epoxy resin)
- Case & process connection: Stainless steel 1.4571
Environmental Protection
- IP65
